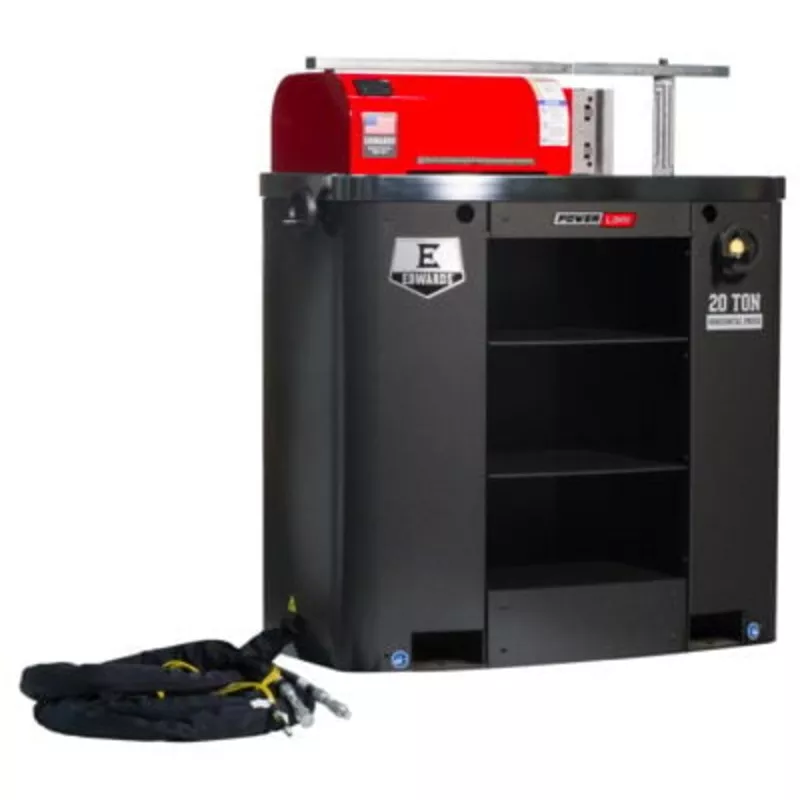

With 20 tons of force, the EdwardsHorizontal Pressaccepts a great variety of tooling to form, brake, and straighten mild steel. This compact powerhouse quickly connects to your Edwards Ironworker with a Hydraulic Accessory Pack or Edwards Porta-Power to greatly expand your fabrication capabilities. Designed for maximum tooling flexibility, the 4 pin locations are locked with a simple crank for inboard tool squaring. The included digital encoder reads positive stop for accurate repeatability. The potential of this tool is only limited by your imagination.
Features:
Heavy-Duty 1/2″ Steel Construction
Cylinder with 4″ Ram and 12-1/4″ Stroke
Rolling Cylinder for Maximum Versatility
Working Area of 38″ x 40-1/2″
Easy-to-Use Hand/Jog Controls
Quick-Disconnect Hoses
Hydraulic-Assist Table Height Adjustment
Specifications:
Standard Motor
5 HP 3~ 208 V or 230 V,1725 RPM 14 A
Optional Motors
5 HP 3~ 460 V,1725 RPM 7 A
5 HP 3~ 575 V,1725 RPM 6 A
5 HP 1~ 230 V,1725 RPM 23 A
Hydraulic Pump
3-1/2 GPM – 1 Stage
Valve Pressure
2750 PSI
Reservoir
7 Gallons
Rating
20 Tons
Cylinder
2.25″ Ram
Stroke
10″
Work Height
38″-40″
Table Dimensions
24 x 42
Weight
1350 Ibs
Dimensions:
Pin Diameter 2″Dimensions 9.79″ min to 13.54″ max(tool chuck to pin centers)Pin Height 6″ max (standard tooling)Tooling Head 1/2″ T Nut/Set Screw & American Standard Brake Punch Tooling
